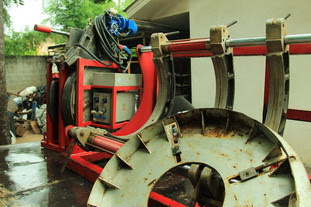

SHD800/450 Hydraulic butt fusion
welding machine
Hydraulically operated butt welding
machine, suitable for PE, PP and PVDF pipes and fittings. High quality design and construction
provides an excellent machine for welding both on the worksite and in the factory. The use
of high quality Aluminum castings allows for lower weight without compromising strength and
performance. Can be integrated with optional data logger
Technical specifications:
*
Main frame includes four light weight alloy main clamps of 800mm diameter
* Welding
range 450mm to 800mm OD
*
Layer clamps: 800x710, 710x630, 630x560, 560x500, 500x450 (mm)
*
Optional 2 piece liners: 800x710, 800x630, 630x560, 630x500, 630x450 (mm)
*
Low starting pressure and high reliable German hydraulic seals
*
Removable PTFE coated heating plate with high accurate temperature control
system
* Removable cast Aluminum
electrically operated facing tool with current overload protection * Electro-hydraulic pump with
controls, and quick release hose
*
Separate two-channel timer records time in soaking and cooling phases
* Electric overhead crane is included
with standard machine
*
Working voltage: three phases
~380V ±10%, 50Hz (total power:
17.5kw, including trimmer: 1.5kw, heater: 12.5kw, hydraulic unit motor: 3kw, electric hoist: 0.5kw)
~415V ±10%, 50Hz (total power: 20kw,
including trimmer: 1.5kw, heater: 15kw, hydraulic unit motor: 3kw, electric hoist: 0.5kw)
Optional
60Hz also available
* Environment temperature: －10°～45°
* Whole machine consists of basic
frame, heater, trimmer, hydraulic unit, support (for heater & trimmer) and electric overhead crane
*
Optional stub end device for welding end fittings
*
Optional wheeled trolley available
